Key Features
- Sized for 1.062" (1-1/16") bearing cap diameter U-joints
- Compatible with 1310 and 1330 series pinion yokes, transmission yokes, and transfer case yokes
- Complete hardware set: 2 U-bolts, 4 nuts, 4 lock washers
- 0.312"-24 thread diameter with 1.416" center-to-center spacing
- Torque specification: 14-17 lb-ft
- Made in the USA
Description
U-bolts experience repeated stress cycles every time power transfers through your drivetrain. Over time, they stretch and lose clamping force, compromising the secure connection between your driveshaft and yoke. Fresh hardware is essential during any driveshaft service to ensure safe, reliable operation.
This U-bolt kit is engineered specifically for 1310 and 1330 series universal joints equipped with 1.062" (1-1/16") bearing cap diameters. The precision-manufactured U-bolts feature 0.312"-24 threads and a 1.416" center-to-center dimension, ensuring proper fit on U-bolt style pinion yokes, transmission output yokes, and transfer case yokes across Ford, GM, Mopar, and other applications.
The complete kit includes everything needed for one U-joint connection point: two steel U-bolts, four nuts, and four lock washers. Torque nuts to 14-17 lb-ft for proper clamping force. Cross-references Dana Spicer 2-94-28X and Neapco 1-0089 for easy identification. Made in the USA.

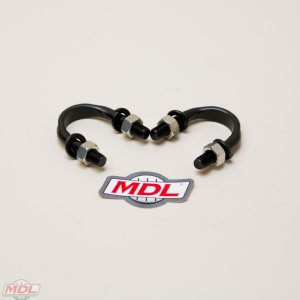

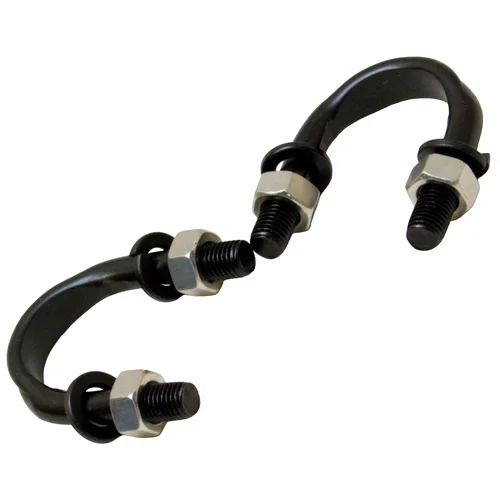

Kit Includes
- 2 steel U-bolts (0.312"-24 thread, 1.416" C/L to C/L)
- 4 nuts
- 4 lock washers
