Key Features
- 4-ounce fluid capacity (7.2 cubic inches) for hydraulic clutch or brake systems
- CNC-machined billet aluminum construction for durability and clean aesthetics
- Remote mount design with universal mounting bracket included
- 3/8-24 thread -3AN male fluid connector adapter for easy plumbing
- Billet aluminum cap and seal assembly included

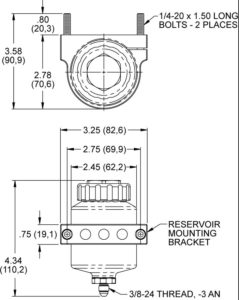

- 4.5-inch overall length x 2.5-inch overall width for compact installation
- Natural anodized finish for corrosion resistance
- Made in the USA
Description
When your hydraulic clutch system needs a clean, professional reservoir solution mounted away from the master cylinder, this Wilwood billet aluminum reservoir kit delivers exactly that. Designed for remote mounting applications, this kit provides a stylish and durable 4-ounce capacity reservoir that keeps your fluid supply positioned wherever works best for your build - whether that's for easier access during bleeding, cleaner routing, or simply a more professional appearance in a crowded engine bay.
The reservoir body is CNC-machined from solid billet aluminum rather than cast or injection-molded plastic, giving you both the structural integrity and the polished look that serious builds demand. At just 4.5 inches long and 2.5 inches wide, it fits cleanly into tight spaces while providing adequate fluid capacity for most hydraulic clutch and brake master cylinder applications. The natural anodized finish resists corrosion and complements other machined aluminum components in your engine compartment.
Plumbing is straightforward thanks to the included 3/8-24 thread -3AN male fluid connector adapter - just run a stainless braided line from the reservoir to your master cylinder. The universal mounting bracket allows flexible positioning anywhere you have clearance and can drill two mounting holes. Stainless steel flex lines in various lengths are available separately for completing your remote mount installation.
Whether you're setting up a hydraulic clutch system or need a remote reservoir for a brake master cylinder, this Wilwood kit provides a purpose-built solution that looks as good as it performs. Made in the USA to Wilwood's exacting standards.

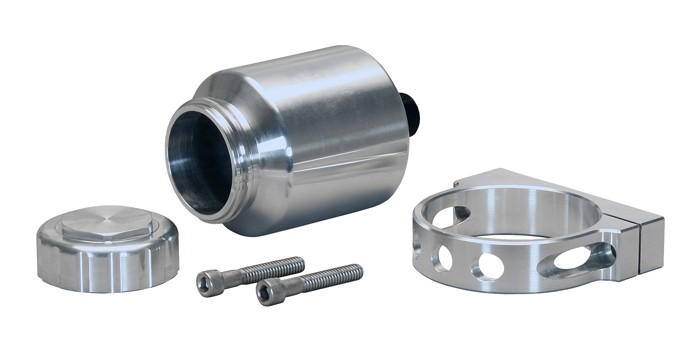

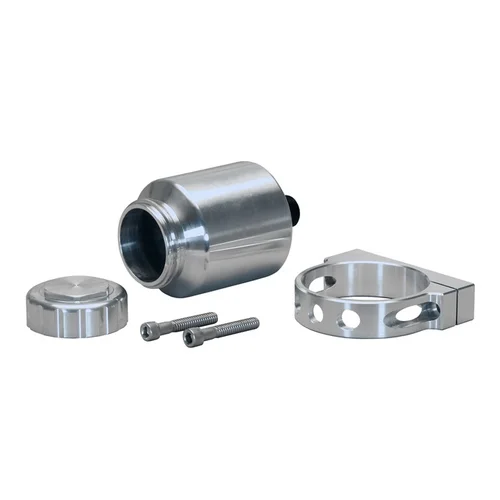

Kit Includes
- Billet aluminum reservoir body (4 oz / 7.2 cu in capacity) with natural anodized finish
- Billet aluminum cap and seal assembly
- Universal mounting bracket
- 3/8-24 thread -3AN male fluid connector adapter
