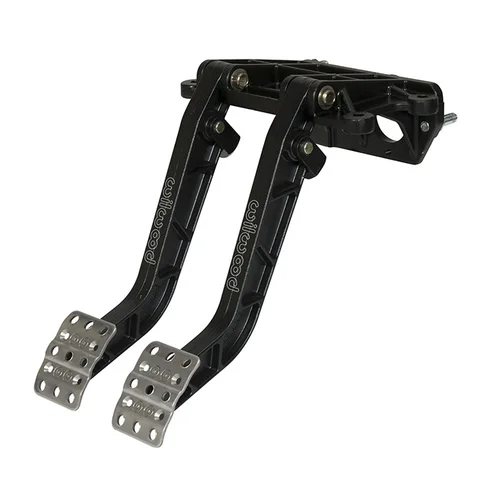

Wilwood Forward Swing Mount Brake/Clutch Pedal Assembly | 6.25:1 Ratio

Key Features

• 6.25:1 pedal ratio on both brake and clutch pedals for optimized leverage and pedal feel
• Lightweight aluminum frame with high-strength I-beam style forged pedal arms
• Forward swing mount design positions master cylinders outside the firewall
• Aluminum Platinum-E anodized finish for corrosion resistance
• Accommodates tandem brake master cylinders with 3.25" horizontal bolt spacing
• Additional mount points for 2.50" vertical spacing tandem master cylinders (5/16-18 studs not included)
• Clutch master cylinder mount with 2.25" vertical spacing for most single-outlet cylinders
• Non-skid waffled stainless steel pedal pads with lateral adjustment
• 12.05" pedal arm length; 12.38" overall mounted length

Description

Simplify your custom brake and hydraulic clutch conversion with this forward swing mount pedal assembly from Wilwood. Designed for race cars, street rods, and custom builds, this assembly streamlines installing a tandem outlet brake master cylinder alongside a hydraulic clutch master cylinder in a forward position outside the firewall. The 6.25:1 ratio on both pedals delivers the ideal balance between pedal effort and brake modulation for manual brake systems or light power assist applications.

Built from lightweight aluminum with high-strength I-beam style forged pedal arms, this assembly eliminates the flex and compliance that plague factory stamped steel pedals. The rigid construction ensures consistent pedal feel and precise master cylinder actuation under heavy braking. Both pedals measure 12.05" in length for consistent leverage, while the non-skid waffled stainless steel pedal pads adjust laterally for driver preference or clearance requirements.

Master cylinder mounting versatility sets this assembly apart. The brake master cylinder mount accepts most tandem cylinders with 3.25" horizontal bolt spacing, while the pedal base includes additional mount points for vertical-mount 2.50" spacing tandem master cylinders using 5/16-18 studs (not supplied). The clutch master cylinder mount features 2.25" vertical spacing to accommodate most popular single-outlet cylinders. Designed specifically for use with Wilwood aluminum tandem or composite master cylinders, this pedal assembly integrates seamlessly into custom brake system builds.

The durable Platinum-E anodized finish provides long-term corrosion resistance in harsh environments. With an overall mounted length of just 12.38", this assembly packages easily in tight firewall areas while maintaining comfortable ergonomics. This product is drop-shipped directly from Wilwood and is not stocked at MDL.

Kit Includes

• Wilwood forward swing mount brake/clutch pedal assembly with Platinum-E anodized finish
• High-strength I-beam style forged aluminum pedal arms (12.05" length each, 6.25:1 ratio)
• Non-skid waffled stainless steel pedal pads with lateral adjustment hardware
• High-strength steel master cylinder mounting studs
• Mounting hardware
