Key Features
- Replicates original Ford T-98 and three-speed truck transmission mounting holes for mechanical clutch linkage
- Eliminates the expense of converting to a hydraulic clutch actuation system
- Compatible with various World Class T5 tail housing configurations
- Designed specifically for front-shift converted TREMEC T5z transmissions
- Bolt-in installation with complete hardware included
- Confirmed fitment for 1953-1956 Ford F-Series trucks with Y-Block engines
Description
Y-Block F-Series truck owners have long faced a frustrating choice when upgrading to a modern five-speed: ditch the factory mechanical clutch linkage and spend significant money on a hydraulic conversion, or stay stuck with the original three-speed or four-speed transmission. This clutch linkage bracket assembly eliminates that dilemma by duplicating the mounting hole pattern found on the original Ford T-98 and three-speed truck transmissions, letting you bolt your existing mechanical clutch linkage directly to a World Class T5.
The engineering is straightforward but solves a real problem. Ford's 1953-1956 Y-Block trucks used a bellhousing-mounted transmission design where the clutch linkage attached to the transmission case itself. When you swap in a modern T5, those mounting points disappear. This bracket bolts directly to the T5 tail housing and positions replica mounting holes exactly where the factory linkage components expect them. Your throwout arm, cross shaft, and related linkage components attach just as Ford intended--no fabrication, no cutting, and no expensive hydraulic master cylinder and slave setup.
This bracket supports various World Class T5 tail housing configurations and is designed to work specifically with MDL's front-shift converted T5z transmissions. The combination of a modern five-speed overdrive transmission with your truck's original mechanical clutch feel preserves the driving experience Y-Block enthusiasts value while adding the benefits of five forward speeds. Confirmed to fit 1953-1956 Ford F-Series trucks with Y-Block V8 engines.
Kit Includes

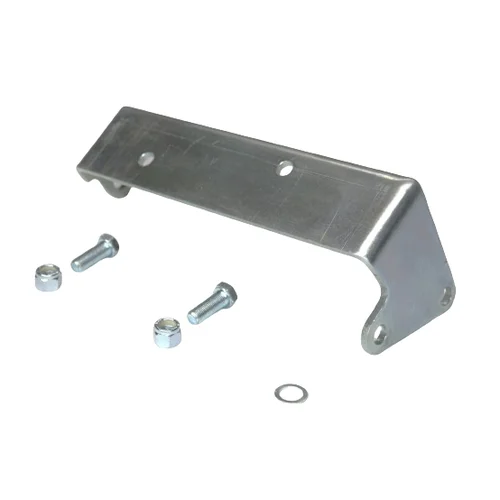

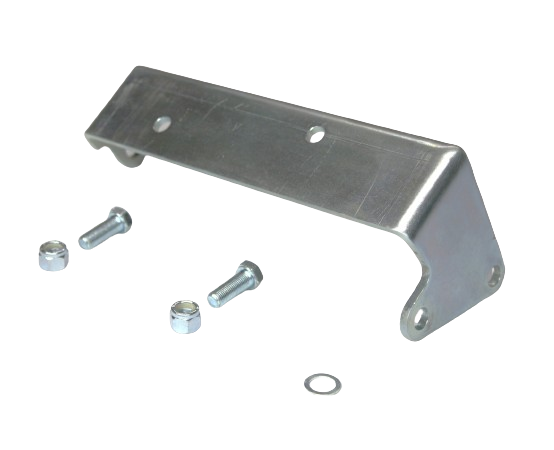

- Machined clutch linkage mounting bracket
- Complete hardware pack for bolt-in installation
- Lifetime technical support
