Key Features
- Close-ratio/short-throw design for lightning-quick shift response
- Engineered exclusively for MDL MD-510-1001 front shift T5 tail housings or MDL front shift position transmissions
- Stub offset options: 1" left, straight up, or .5" forward from pivot point
- Billet aluminum construction saves weight and resists corrosion
- Anodized finish for long-term durability
- Small top turret clears tight tunnel and floor openings
- 7/8in. on-center mounting pattern fits most aftermarket shift levers
- Belleville washer detent system delivers crisp 2-3 shifts
- No internal stops to break or replace -- simplifies servicing
- High-temperature lower dust boot protects internal components
- Proudly crafted 100% in the USA
Description

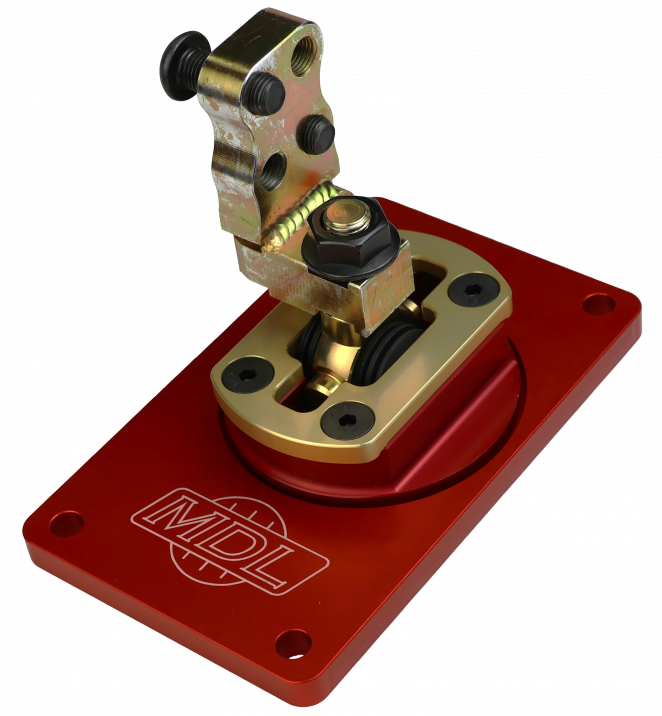

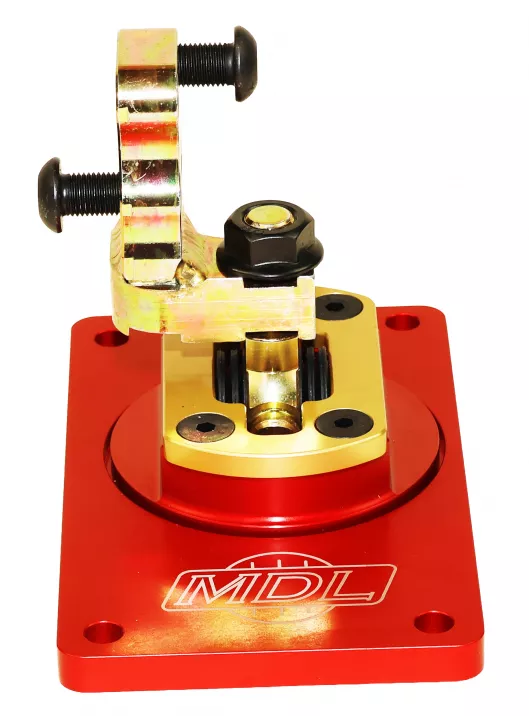

Tight tunnel openings and awkward shifter placement kill the driving experience in many T5 swaps. The MDL Qwik Stik Shifter solves both problems with a compact top turret designed to clear restrictive floor openings and multiple stub offset options -- 1" left, straight up, or .5" forward -- so you can dial in ergonomics without cutting sheetmetal.
This shifter is purpose-built for MDL's MD-510-1001 front shift T5 tail housings or any MDL front shift position transmission. The custom pivot point and bolt pattern mean it will not work with standard-position T5 tail housings. Billet aluminum construction shaves weight while the anodized finish resists corrosion and wear. The Belleville washer detent system replaces traditional stops, delivering a crisp feel on every gear change without the breakage risk that plagues stock designs. When service is needed, the stop-free design makes teardown straightforward.
The shifter stub features a 7/8in. on-center mounting pattern compatible with most aftermarket shift levers, giving you flexibility to match your interior. A high-temperature lower dust boot keeps debris and fluid out of the mechanism. Ideal for hotrods, street rods, Ford Ranger V8 conversions, and any build where seat clearance or tunnel space is at a premium.
Attach your shift lever, boot, and knob -- you're ready to drive. Made in the USA with lifetime technical support from the MDL team.
Kit Includes
- Billet aluminum Qwik Stik shifter assembly (anodized)
- High-temperature lower dust boot
- Belleville washer detent system
- Mounting hardware
- Lifetime technical support
Note: Does not work with standard shift position tail housings. Requires MDL front shift T5 components (MD-510-1001 or MDL front shift position transmission) for proper fitment. Shift lever, boot, and knob sold separately.
