Eliminator Series External Hydraulic Slave Kit | 1973-1981 Chevy 3/4-Speed | Dimple Bell
Key Features
- Retains OEM 3-speed or 4-speed mechanical clutch fork - no fork or clutch replacement required
- 0.813-inch bore slave cylinder for proper pedal feel and engagement
- Mounting bracket attaches to existing bellhousing bolts - no modifications needed
- Cylinder housing can be clocked for optimal fitting position and exhaust clearance
- Adjustable clutch fork push rod for precise engagement tuning
- Requires only 1 inch of clearance in front of the bellhousing
- 24-inch stainless steel braided -4AN hydraulic line included
- Compatible with MDL LF Series and Stealth Series master cylinders
- Does NOT fit Lakewood 77-150 bellhousing
- Made in the USA
Description
The Z-bar mechanical linkage on '73-'81 Chevy applications is notorious for bending, wearing out, and interfering with aftermarket headers and power steering boxes. The Eliminator Series external slave cylinder kit solves all of these problems by converting your mechanical clutch release to smooth hydraulic operation - without requiring a clutch replacement or internal hydraulic release bearing installation. That saves you significant time and money while delivering improved pedal effort and feel.

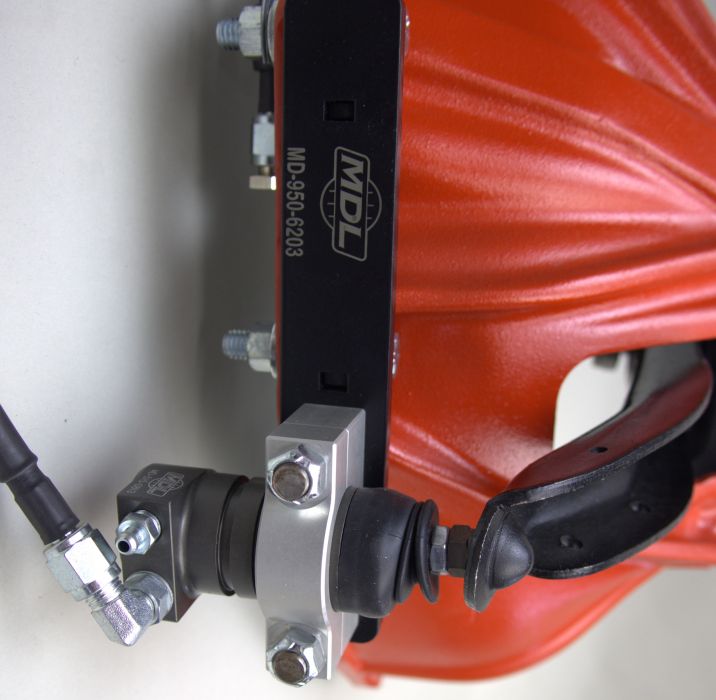

This external slave cylinder works with your existing OEM 3-speed or 4-speed mechanical clutch fork, so there is no need to swap components inside the bellhousing. The billet slave cylinder features a 0.813-inch bore sized to work with MDL master cylinders, and the adjustable push rod allows precise clutch engagement tuning. The cylinder housing can be easily clocked to position the -4AN fittings facing to the side or top as needed for optimal line routing and exhaust clearance.
Installation is straightforward - the mounting bracket attaches to existing bellhousing bolts without any modifications to the bellhousing or transmission. The kit requires only 1 inch of clearance in front of the bellhousing. Compatible with both OEM and Quick Time bellhousings featuring the '73-'81 dimple-style bolt pattern. When paired with MDL LF Series or Stealth Series master cylinder kits, this engineered system eliminates all guesswork and delivers maximum results. Made in the USA.
Note: This kit does NOT fit Lakewood 77-150 bellhousing.

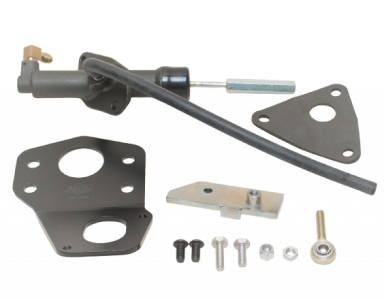

Kit Includes
- Billet aluminum external slave cylinder with 0.813-inch bore
- Mounting bracket and all mounting hardware
- 24-inch stainless steel braided -4AN hydraulic line
- -4AN fittings and bleeder screw
- Adjustable clutch fork push rod
- Installation instructions
- Lifetime tech support
