Key Features
- Works with your existing OEM mechanical clutch fork and clutch assembly - no transmission removal required
- 0.813-inch bore hydraulic cylinder for precise clutch actuation
- Requires only 1 inch of clearance in front of bellhousing for installation
- Cylinder housing rotates for optimal line routing and header clearance
- Adjustable clutch fork push rod for dialing in engagement point
- Mounts to existing bellhousing bolts - no modifications required
- Compatible with both LF Series and Stealth Series master cylinders
- 24-inch AN-4 stainless steel braided line included
- Made with pride in the USA
Description
Bent Z-bars, worn pivot balls, and heavy clutch pedal effort are problems of the past. The MDL Eliminator Series external slave cylinder converts your 3-4 speed Ford Small Block mechanical clutch linkage to smooth hydraulic operation while keeping your existing clutch fork and pressure plate assembly in place. No need to drop the transmission or swap to an internal hydraulic release bearing - this kit saves you time and money by mounting externally.

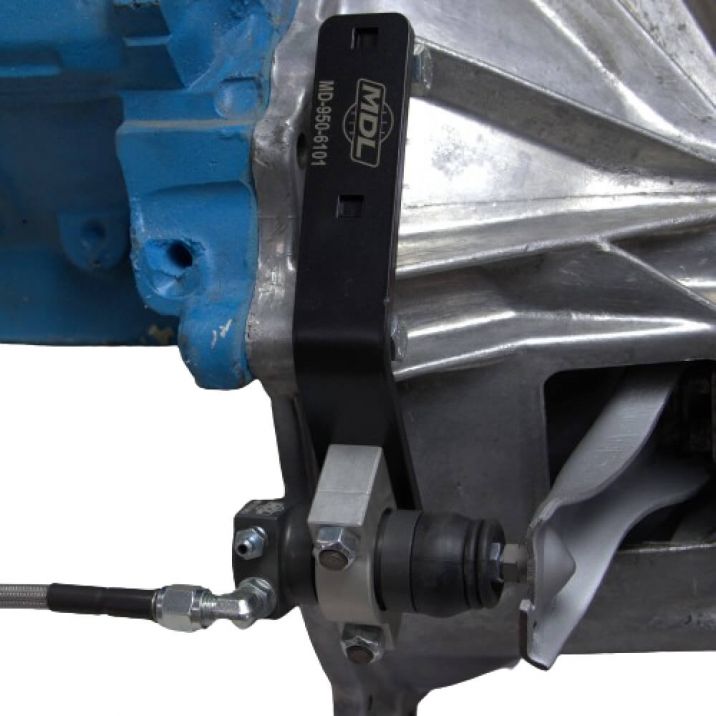

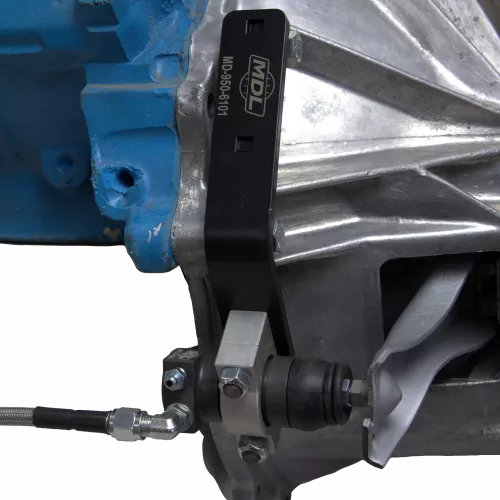

The Eliminator Series removes the mechanical linkage entirely, improving pedal effort and feel while providing clearance for aftermarket headers and power steering boxes. The slave cylinder mounts to your existing bellhousing bolts without modifications, pushing the clutch fork from behind. An adjustable push rod lets you dial in the exact engagement point, and the cylinder housing can be clocked to position the AN-4 fitting facing sideways or upward for optimal line routing.
Engineered as a complete system, this kit pairs seamlessly with MDL's LF Series and Stealth Series master cylinder kits. The system requires a master cylinder throw distance of 1.4 inches for proper operation. Installation requires just 1 inch of clearance in front of the bellhousing.
Designed for OEM and Quick Time 5-bolt Small Block Ford bellhousings using a mechanical clutch fork. Also available for 6-bolt Small Block Ford applications, with Ford I-6 and FE kits coming soon. Made with pride in the USA.
Kit Includes
- Hydraulic slave cylinder with 0.813-inch bore
- Mounting bracket
- 24-inch AN-4 stainless steel braided line
- AN fittings
- Line clamp assembly
- Mounting hardware
- Installation instructions and lifetime tech support
