Key Features
- Converts cable clutch release to external hydraulic operation on 2001-2004 Mustang TR3650
- Mounts inside bellhousing using stock bolt locations - no modifications required
- Pushes cable fork from behind to clear long-tube headers and aftermarket exhaust
- 0.75-inch bore slave cylinder delivers proper throw for complete clutch disengagement
- Utilizes OEM cable fork with bolt-on pivot socket - no fork replacement needed
- Adjustable push rod for precise clutch engagement tuning
- -4AN braided stainless steel line and fittings for durability and leak-free service
- Easy-access bleed port simplifies maintenance and air removal
- Made in the USA with lifetime technical support
Description

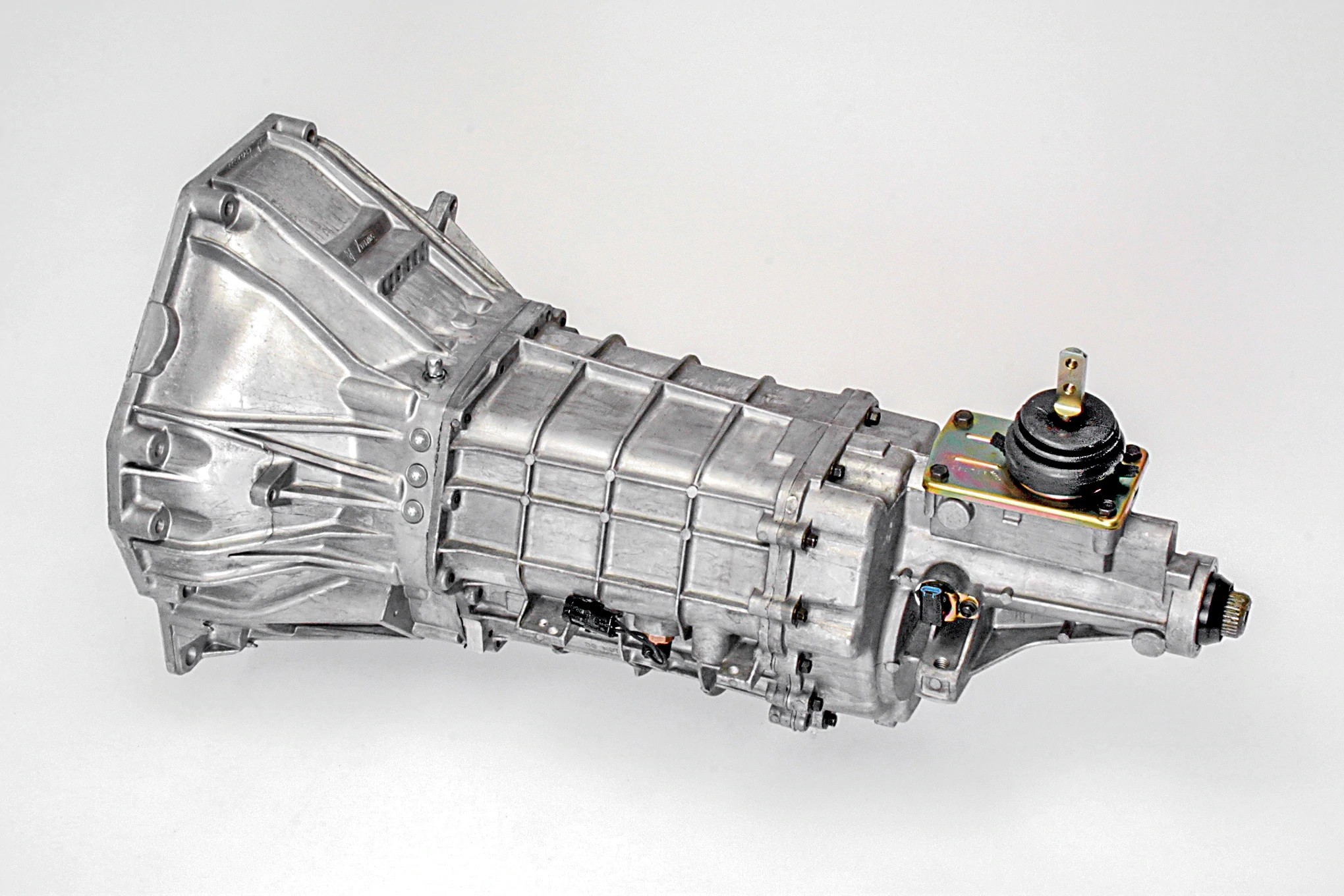

The 2001-2004 Mustang GT's cable-actuated clutch system has well-documented limitations. Cables stretch and drag over time, creating heavy pedal effort that only gets worse. Header clearance becomes a problem with any serious exhaust upgrade - routing a clutch cable around long-tube headers invites heat damage and binding. The LF Series External Hydraulic Slave Kit solves both problems by converting the stock TR3650 bellhousing to external hydraulic clutch release.
This kit mounts the slave cylinder just inside the bellhousing using the factory bolt locations - no cutting, welding, or case modifications. The cylinder pushes the original cable fork from behind through a bolt-on pivot socket, so you keep the OEM fork and throwout bearing. That rear-push design moves the cylinder away from your exhaust, eliminating heat soak and providing room for headers and larger primaries. The adjustable push rod lets you dial in clutch engagement precisely where you want it.
The 0.75-inch bore slave cylinder is sized to work with MDL LF Series master cylinder kits as a matched hydraulic system. Engineered together, the bore ratios deliver proper pedal feel and full clutch release without the guesswork of mixing components. The -4AN braided stainless steel line handles hydraulic pressure without expansion, and the easy-access bleed port makes air removal straightforward. Made in the USA with lifetime technical support included.

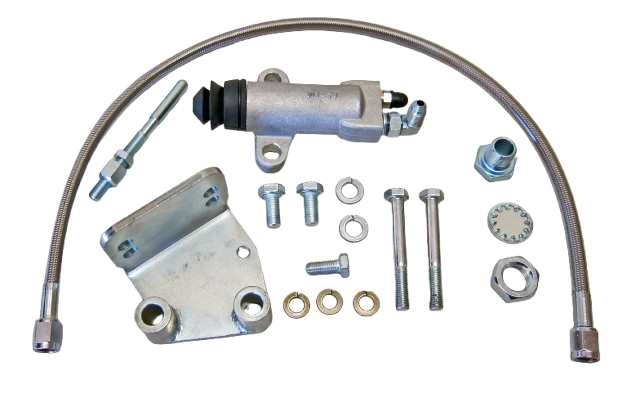

Kit Includes
- 0.75-inch bore external slave cylinder with adjustable push rod
- Bolt-on pivot socket for OEM cable fork
- -4AN braided stainless steel hydraulic line
- -4AN fittings
- Mounting hardware
- Installation instructions
- Lifetime technical support
