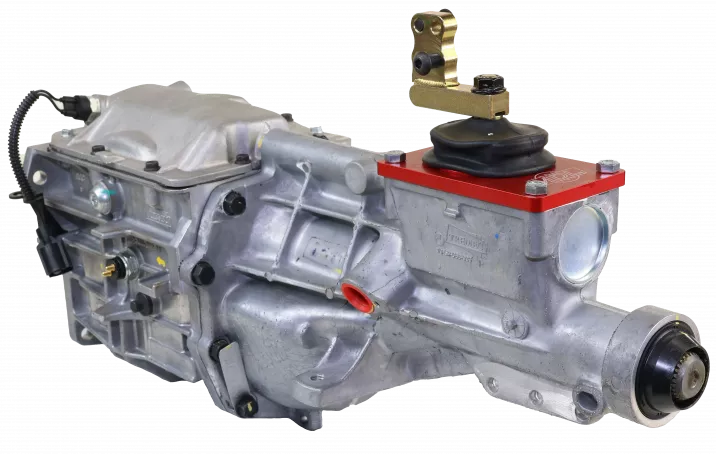

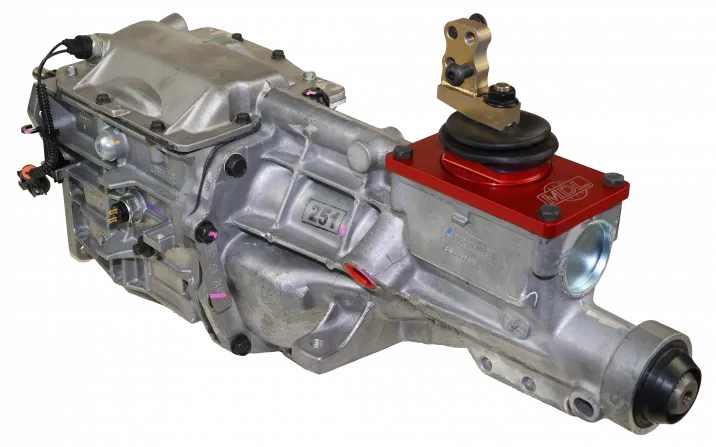

Modified TREMEC T5Z 5-Speed | Rear Position Front Socket Shifter, 1" or 1.5" Forward Offset

Key Features

• 330 ft-lb torque capacity - handles up to 450 hp on street tires
• 2.95 first gear ratio for strong launch performance
• 0.63 overdrive drops cruise RPM for improved fuel economy and reduced engine wear
• Gear ratios: 2.95, 1.94, 1.34, 1.00, 0.63 OD - Reverse 2.76
• World Class internals with carbon fiber synchronizer rings on gears 1-4
• 10-spline input shaft (1-1/16" diameter) and 28-spline output shaft
• Steel front bearing retainer with Cobra-style pocket bearing
• Tapered carrier bearings and main needle bearings throughout
• Ford speedometer drive with 7-tooth gear (6 and 8-tooth available)
• High-performance short-throw billet aluminum shifter included
• Rear position front socket with 1" or 1.5" forward offset capability (16.75" to 17.25" from bellhousing face)
• 2.75 quarts ATF Dexron III fluid capacity
• Just 75 lbs dry - TREMEC's most compact transmission
• Optional 0.73 overdrive ratio available

Description

The TREMEC Super Duty T5 solves a common problem in classic car conversions: dropping a modern 5-speed into tight engine bays where larger transmissions simply won't fit. At just 75 pounds dry, this is TREMEC's most compact transmission - yet it handles 330 lb-ft of torque and is suitable for street cars making up to 450 horsepower on DOT-approved tires.

The "Z-spec" designation (part number 1352-0251) identifies this as TREMEC's heavy-duty aftermarket T5, a significant upgrade over the weaker T5s originally found in '83-'93 Mustangs. The World Class design uses tapered carrier bearings rather than bushings, providing superior durability under load. Carbon fiber synchronizer rings on the first four gears deliver smooth, positive engagement even under aggressive driving. The steel front bearing retainer and Cobra-style pocket bearing eliminate the weak points that plagued earlier T5 variants.

This rear position front socket configuration offers 1" or 1.5" forward offset flexibility, placing the shifter between 16.75" and 17.25" from the bellhousing face - ideal for classic car conversions where the original shifter location needs to be maintained. The 2.95 first gear provides strong take-off performance, while the taller 0.63 overdrive reduces engine temperatures and drivetrain wear during highway cruising. The T5z is the best transmission for retrofits of 4-speed or automatics in classic cars and hot rods with a small block.

Direct replacement for 1983-1993 V8 Mustangs and ideal behind any small-block Ford engine or as an upgrade for inline-four and six-cylinder applications. The 10-spline input matches most small-block Ford applications, while the 28-spline output provides robust driveline connection.

Call MDL at 208-453-9800 to discuss your specific application and verify fitment details for your particular chassis.

Kit Includes

• TREMEC T5z 5-speed Super-Duty transmission with custom shift lug
• Rear position front socket assembly with 1" or 1.5" forward offset
• 10-splined input shaft and 28-splined output shaft
• Steel front bearing retainer
• Cobra-style pocket bearing
• Carbon fiber 3-4 synchronizer rings
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Ford pattern mechanical speedometer drive assembly with 7-tooth gear (6 or 8-tooth available separately)
• Fill and drain plugs
• Installation instructions
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support from Modern Driveline

Note: GM transmission mount MD-604-1102 required but not included. Front-shift tail housing also available separately in kit form: MD-510-1001 (forward position, requires MDL quick shifter) or MD-510-1000 (rear position, uses stock Mustang T5 shifter).
