Key Features
- Billet aluminum construction with anti-corrosion plating for high strength and durability
- 7/8" bore with 1.38" stroke delivers precise hydraulic clutch engagement
- Stainless steel pushrod provides longer stroke than standard cylinders for complete clutch release
- Pull-type operation for applications requiring clutch fork engagement toward the firewall
- 11.70" overall extended length with 0.60 cubic inch volume displacement
- 3/8-24 IF or 1/8-27 NPT fluid inlet with 1,200 PSI maximum input pressure rating
- Recommended 3/4" master cylinder bore for optimal pedal ratio and feel
- 5/16-24 threaded pushrod shaft for secure clutch fork attachment
- Fully rebuildable design for long-term serviceability
- Compatible with DOT 3 or DOT 4 brake fluid
Description

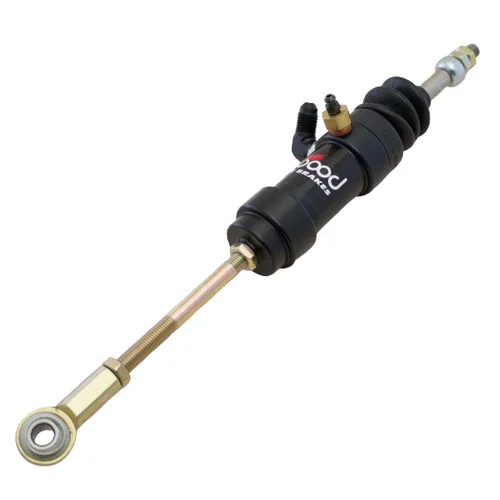

When your clutch linkage geometry demands pull-type engagement rather than push-type operation, this Wilwood external slave cylinder delivers the hydraulic force and stroke length your high-performance build requires. Unlike push-style cylinders that move the clutch fork away from the engine, pull-type operation draws the fork toward the firewall—solving clearance and geometry issues common in racing and custom applications.
Precision-machined from billet aluminum for maximum strength and plated with a tough anti-corrosion finish, this slave cylinder withstands the punishment of drag racing, circle track, Pro Street, and off-road applications. The stainless steel pushrod delivers a longer-than-standard 1.38" stroke, ensuring complete clutch disengagement every time—critical for crisp gear changes under race conditions. The 7/8" bore paired with a recommended 3/4" master cylinder provides the ideal hydraulic ratio for consistent pedal feel and full clutch release.
Proper installation requires mounting the cylinder at 90 degrees from the clutch fork at the apex of travel and parallel with the fork's swing arc to prevent premature wear from side loading. The 5/16-24 threaded pushrod attaches directly to a drilled hole in the clutch fork—note that this attachment point may differ from the original mechanical linkage contact location. For complete air purging during bleeding, position the bleed screw at 12 o'clock. With dual inlet port options (3/8-24 IF or 1/8-27 NPT), this universal slave cylinder adapts to virtually any plumbing setup.
Kit Includes
- Wilwood billet aluminum pull-type slave cylinder with anti-corrosion finish (Part No. 260-1333)
- Stainless steel pushrod assembly (5/16-24 thread)
- Bleed screw
